Features of Yamato Co.,LTD

 Automobile exhaust is here

Processing Size for each machine

TB-D-90-NC3

76.3φ

135R

80φ

140R

89.1φ

160R

101.6φ

160R

TB-DR-60CNC

38.1φ

80R

42.7φ

80R

50.8φ

80R

60.5φ

100R

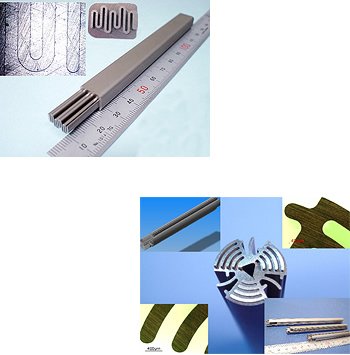

Wire EDM Drilling machine

Each axis stroke XxYxZ (mm)

570×370×350

U x V axis stroke(mm)

120 × 120

Maximum taper angle

25 degrees(board thickness 100mm)

Maximum size of process (W x D x H mm)



770×520×340 (when jet processing)

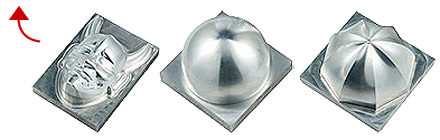

Vertical Machining Center

Table Size (mm)

1100×610

Travel Rangers (X×Y×Z mm)

950×610×610

Max. Table Load (kg)

850

Spindle Nose to Table Surface (mm)

110 to 720

T-slot (Width×Distance×Number mm)

18×125×5

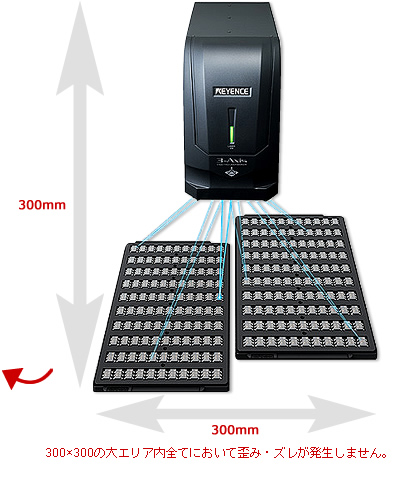

3D Laser Marker

Non-necessary for X-Y Stage
High speed and precise printing to 300mm wide area

World's first: DEPC (Dual End Pumping Cavity)
World's first: High peak power with ultra-short pulse width
World's largest range: Ultra-high pulse recurrence frequency 400 kHz
World's first: 42-mm variable focal length
World's first: Variable spot size
Largest in its class: 300 x 300-mm wide area
World's first: 3-Axis marking with outstanding visibility Laser marker has the capability to perform marking not only in the X and Y directions, but also the Z direction! The MD-Vemploys YVO4 as its laser crystalline media for stable high-quality marking.

Machines in our facility

Name of machine

Maker

type

qty

Process size

Semi-Auto Welding machine

Panasonic Welding System Co., Ltd

MINI180

6



Semi-Auto Welding machine

Panasonic Welding System Co., Ltd

K350

2



Semi-Auto Welding machine

DAIHEN Corporation

CPTM-1801

2



Semi-Auto Welding machine

Panasonic Welding System Co., Ltd

KFⅡ200

1



Semi-Auto Welding machine

DAIHEN Corporation

18BC

1



Semi-Auto Welding machine

Panasonic Welding System Co., Ltd

YX-09KGC1

1



Full Digital TIG Welding machine

Panasonic Welding System Co., Ltd

YC-300BP2

1



TIG Welding machine

Panasonic Welding System Co., Ltd

WX300

1



TIG Welding machine

DAIHEN Corporation

VRTP-200

1



TIG Welding machine

DAIHEN Corporation

VRTP-300

1



TIG Welding machine

Panasonic Welding System Co., Ltd

YC-300TWX-2

1



TIG Welding machine

Panasonic Welding System Co., Ltd

TIG STAR300

1



Air Plasma Cutting machine

Panasonic Welding System Co., Ltd

YP060P-5

1



Air Plasma Cutting machine

DAIHEN Corporation

A-50

1



Eye Tracer Auto Cutting machine

Tanaka Manufacturing Co., Ltd

KT-530GE

1



Spot Welding machine

Panasonic Welding System Co., Ltd

ＹP-250ＳＰＡ-5

1



Level Auto Welding machine

Sanwa Tech Co., Ltd

L-300

1



Level Auto Welding machine

Sanwa Tech Co., Ltd

EL-603

1



Welding Interlocking Control System

Matsumoto Kikai Co., Ltd

TCS- 6000

1



Positioner

Matsumoto Kikai Co., Ltd

PS-1F-L

3



Shearing

Aizawa Iron Works Co., Ltd

A525

1



Metal Saw

Daido Kogyo Inc

DM-2

6



Metal Saw

Hitachi Kogyosho Co., Ltd

H-16・2

1



Metal Saw

Kosoku Electric Co., Ltd

KCM-250A

1



Metal Saw

Hitachi Kogyosho Co., Ltd

CC16SD

1



Rotary Band Saw

Cosen Machinery Industrial Co., Ltd

AH250H

1



Contour machine

AMADA Co., Ltd

V-300

1



Contour machine

AMADA Co., Ltd

V-400

1



Table Boring machine

Fujimori Machine Co., Ltd

BGH-100

1



Table Boring machine

Hitachi Kogyosho Co., Ltd

B13RH

1



Table Boring machine

KIRA Corporation

KRTG-420

1



Ball Milling

TAKISAWA Machine Tool Co., Ltd

TSR550DX

1



Ball Tapping

Hitachi Kogyosho Co., Ltd

B23YC

1



Table Boring machine

Mikuni Electric Industry Co., Ltd

MBD-M13D

1



Table Boring machine

KIRA Corporation

KRDG340

1



Table Boring machine

Yoshida Tekkojo Inc

YBD360

1



Bending Roll (3pcs)



2



Urethane Rolling machine

Ikedaki Corporation

N-6011

1



Pipe Bender

Taiyo Corporation

TB-DR-60CNC

1



Pipe Bender

Taiyo Corporation

TB-D-90-NC3

1



Small Hole EDM Drilling machine

Sodick Co., Ltd

K1C

1



Wire EDM Drilling machine

Sodick Co., Ltd

AQ537L

1



3D Laser Marker

KEYENCE Corporation

MD-V9900A

1



Vertical Machining Center

PINNACLE Machine Tools

SV96

1



3D CAD

Solid Works Corp



1



POWERMILL

Delcam plc



1



Step Press machine

HKB

100メ

2



Belt Grinder

Hitachi Kogyosho Co., Ltd

BGH-100

2



Belt Grinder

Denyu Corporation

SRH-1124

1



Buffer

Todoroki Machine Works. Ltd



2



Press

Sato Seiko Co., Ltd

SR-32

2



Press

Miyazaki

30t

2



Press

Miyazaki

12t

7



Press

Kanesaka Tekkojo

30t

3



Press



6t

1



Press

KAWA PRESS System Pvt. Ltd



1



Press Brake

AMADA Co., Ltd

SPH-30C

2



Compact Press

Date Press Engineering Inc

STP-100

1



Double Flanger

OMD

S43-3

1



Terminal Process

DIP Inc

DPM-S16

2



2 pole lift

Sugiyasu Co., Ltd

OPS25

2



Ceiling Crane





2



Forklift

Komatsu Ltd

FC15L-15

2
